12 Essential Components of Blown Film Line: A Comprehensive Guide

Blown Film Lines are the powerhouses behind various thin plastic films used in packaging, agriculture, construction, and more. Understanding their parts is crucial for optimal production, consistent quality, and efficient troubleshooting. Let's explore the 12 key components involved in this fascinating process.

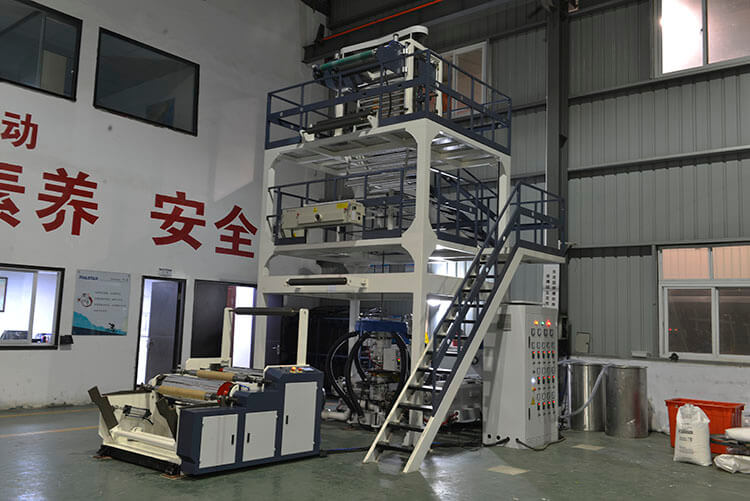

What is Blown Film Line

A Blown Film Line is a manufacturing process used to create plastic films by blowing molten polymer into thin, continuous sheets. The process begins with the extrusion of molten plastic, typically polyethylene, through a circular die to form a tube. Air is blown into the center of this tube, expanding it into a bubble, which determines the film’s thickness and width. The bubble is then cooled, collapsed into a flat sheet, and wound into rolls for further processing.

Blown film lines are highly versatile, allowing for the production of single or multi-layer films, often used in industries like packaging, agriculture, and medical applications. These films can be customized with additives like UV inhibitors or anti-static agents to meet specific needs. The process is cost-effective and provides strong, durable films with good mechanical properties, making it a preferred choice for products like food packaging, agricultural films, and protective materials

1. Blown Film Extruder : The Heart of the Operation

The extruder is the core of a blown film line. It uses a rotating screw within a heated barrel to melt and homogenize plastic resin pellets into a molten polymer.

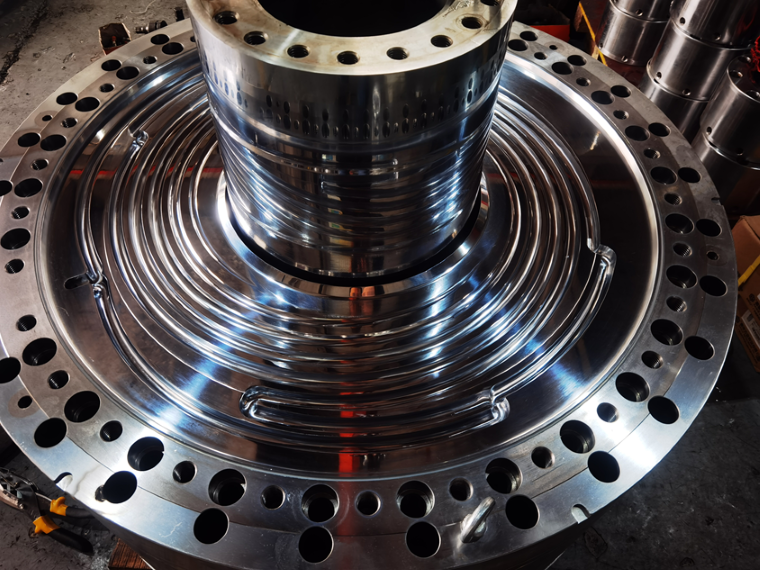

2. Blown Film Die : Shaping the Melted Plastic

The die, connected to the extruder, shapes the molten polymer into its initial tubular form. Die design significantly impacts film thickness, width, and overall properties.

3. Material Feeding System : Keeping the Flow Consistent

This system, often including a hopper, feeder, and blender, ensures the extruder receives a steady flow of plastic resin pellets. Precise feeding is crucial for consistent film characteristics.

4. Blown Film Air Ring : Cooling and Expanding the Film

The air ring surrounds the die, blowing controlled air onto the extruded polymer tube. This cools the polymer and initiates its expansion into a thin film.

5. Blow Film Ring, Bubble Stabilizer, and Collapsing Frame : Shaping and Stabilizing the Film

The blow ring sits inside the extruded tube, directing upward airflow that further expands the film, managing its thickness and shape. Importantly, a bubble stabilizer is often integrated above the blow ring. This helps maintain a consistent bubble shape and prevents fluttering, ensuring optimal film quality. After cooling, the film bubble passes through a collapsing frame. This frame gently flattens the bubble, preparing it for winding. Nip rolls within the collapsing frame help guide and control the film as it transitions to a flat sheet.

6. Blown Film Cooling Ring : Solidifying and Controlling Dimensions

Located below the blow ring, the cooling ring uses controlled airflow or water circulation to rapidly cool the film. This solidifies it, locking in its final dimensions.

7. Extruder Haul-off Unit : Maintaining Film Speed

The haul-off unit, also known as a caterpillar puller, pulls the film away from the blown film line at a precise speed. This synchronizes film movement with the extrusion process to maintain consistency and prevent breakage.

8. Film Treatment Unit (Optional) : Enhancing Film Properties

This optional unit modifies the film's surface to enhance printability, adhesion, or other specific properties, tailoring it for various applications.

9. Blown Film Guiding System: Maintaining Alignment

Rollers, guides, and tension control mechanisms make up the film guiding system. It keeps the film traveling straight, preventing wrinkling and ensuring a flawless end product.

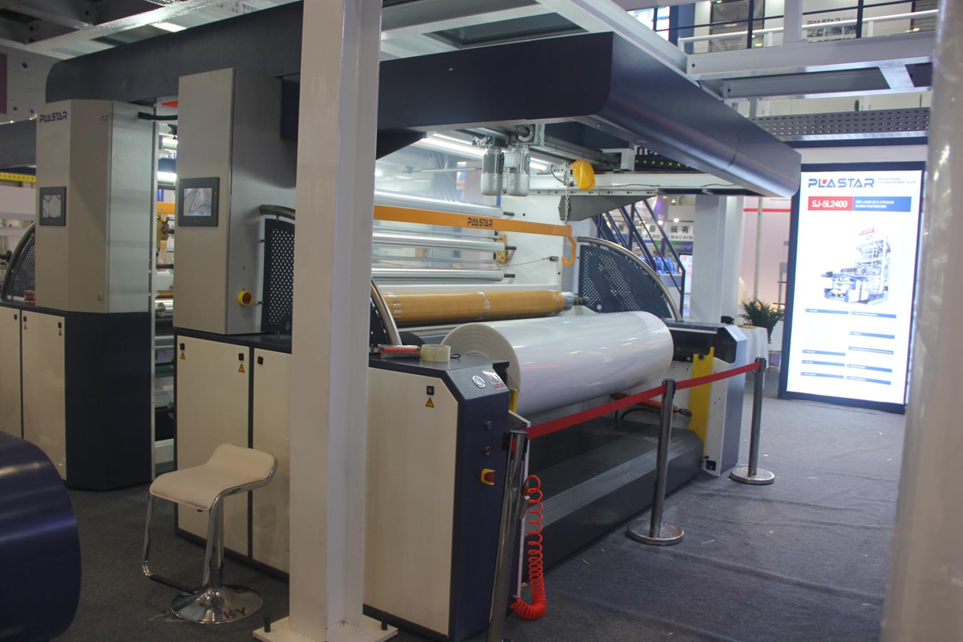

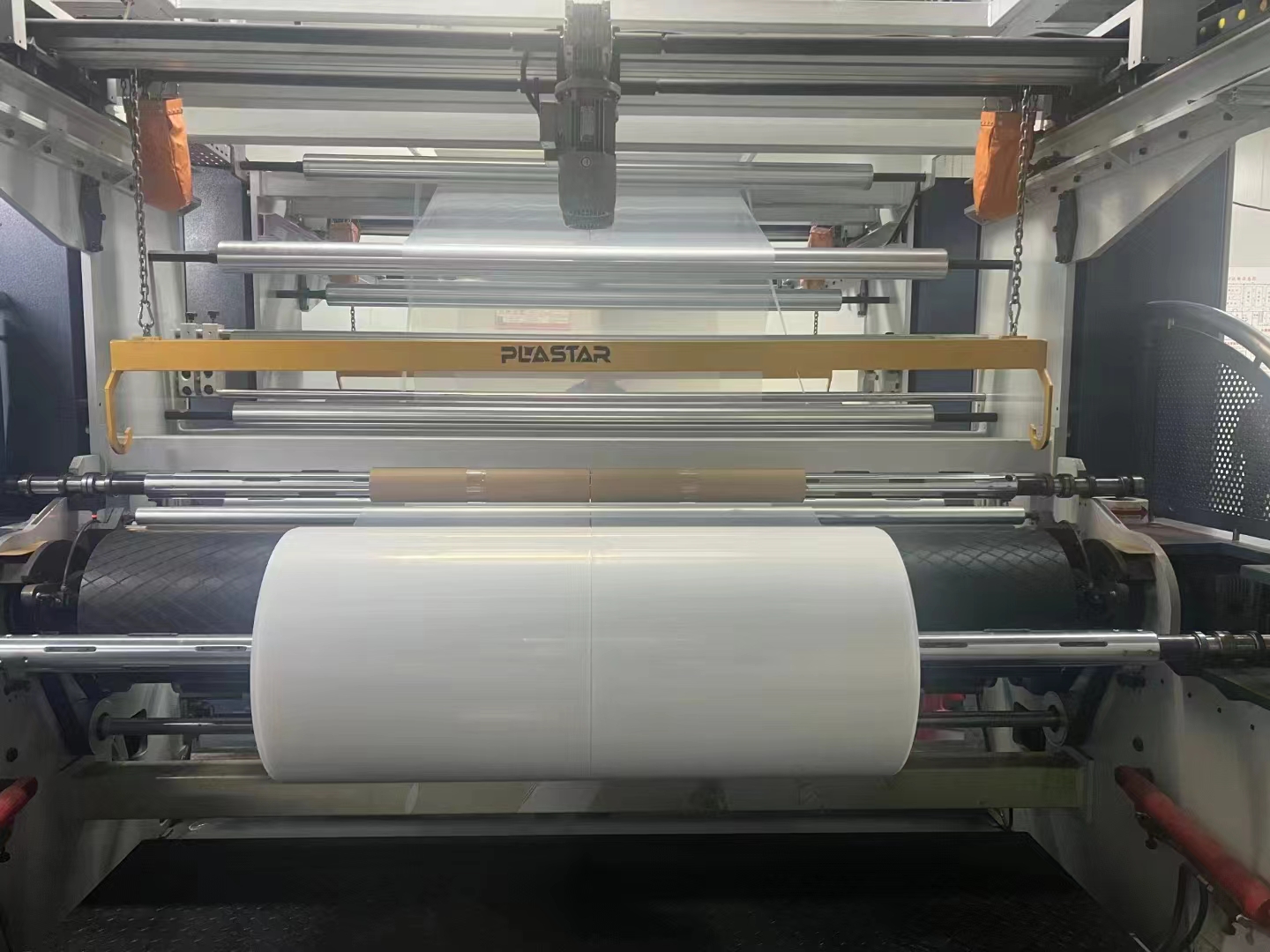

10. Blown Film Winder: The Final Touches

This is the final stage! This unit rolls the finished film onto a core, creating a well-organized roll suitable for storage.

11. Control System : Precision and Optimization

The control system oversees and adjusts temperature, pressure, flow rates, and speeds. This ensures consistent production and a high-quality end product.

Advanced blown film lines often incorporate an IBC (Internal Bubble Control) system as part of the control setup. The IBC system automates width control and bubble stability, leading to improved film thickness uniformity, reduced material waste and higher production rates.

12. Safety System : Protection First

Safety interlocks, emergency shutdown features, and alarms prioritize the safety of both operators and equipment.

Going Beyond the Essentials

Blown film extrusion lines can also incorporate specialized components to enhance functionality. Here are a few examples :

• Rotating Die Head : Combats inconsistencies in film thickness. This specialized die head ensures uniform film distribution.
• Oscillating Haul-Off : Promotes even film distribution across the width of the film. This oscillating haul-off mechanism contributes to superior quality.

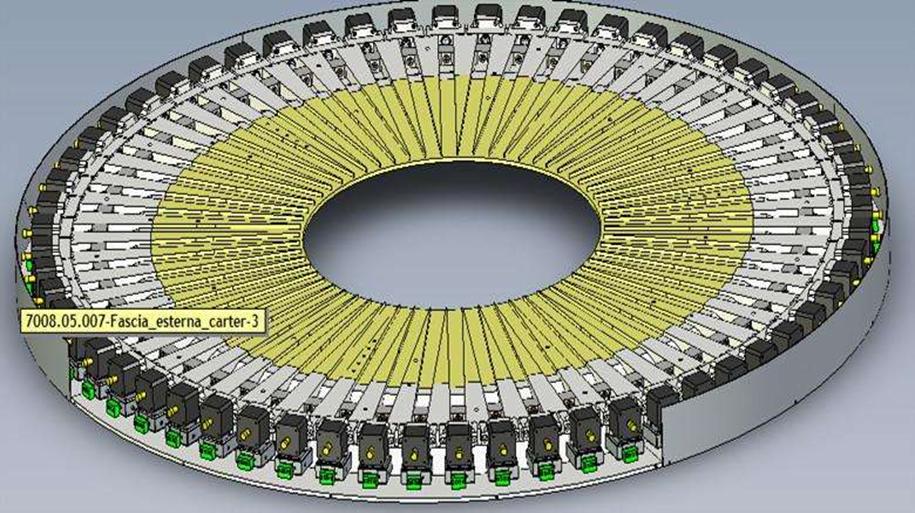

• Automatic Thickness Control : Makes real-time adjustments to maintain film uniformity. This automated system ensures consistent film quality throughout production.

PLASTAR : Expertise in Blown Film Extrusion

With decades of experience, PLASTAR excels in designing and manufacturing high-quality blown film extrusion lines. Our machines are renowned for the following :

• Optimized Extruder Designs : PLASTAR extruders utilize meticulously engineered screws. This design achieves unparalleled efficiency in the melting process, guaranteeing consistent and high-volume output.
• Innovative Die Heads : PLASTAR has a distinguished legacy as a specialist blown film die head manufacturer. Pioneering die head technology , PLASTAR incorporates advanced multi-layer designs. These innovative die heads deliver exceptional film quality, even in complex multi-layer applications.
• Efficient Cooling Systems : PLASTAR's advanced cooling systems employ meticulously controlled airflow or water circulation. This meticulous control achieves rapid and uniform cooling. This translates to superior film properties and dependable performance throughout the production process.

Case Study : PLASTAR's Commitment to Innovation

A professional garbage bag manufacturer based in Saudi Arabia selected PLASTAR blow molding machines for their biodegradable production line. This company utilizes 12 Taiwan-made blow molding machines across their factories to produce household items. They maintain rigorous quality control procedures, from selecting raw materials to final product inspection and shipping. Their dedication to providing consumers with the highest quality products is paramount.

In response to the end customer's demand for enhanced product safety and hygiene protection, the customer's UK partner proposed incorporating biodegradable products into the production line. Consequently, the manufacturer embarked on a search for suitable suppliers of bag blowers and bag making machines. Considering the advantages offered by PLASTAR's mechanical equipment, including user-friendly operation, stable performance, high automation , and overall simplicity and efficiency , the customer selected PLASTAR as their partner. Both parties aim to establish a long-term, collaborative relationship.

Elevate Your Film Production with PLASTAR Blown Film Extrusion Lines

The 12 essential components of blown film extrusion lines work in synergy to transform plastic resin pellets into high-quality film products. Understanding the functions and interactions of these components is crucial for optimizing production, maintaining quality standards, and troubleshooting potential issues. This comprehensive guide has provided an in-depth overview of these key components, empowering you to gain a deeper understanding of the blown film lines.

The 12 essential components of blown film extrusion lines work together to transform plastic resin pellets into high-quality film products. Understanding how these components function and interact is key to optimizing production, maintaining quality, and troubleshooting problems. This comprehensive guide has equipped you with a deep understanding of these key components in blown film lines.

Ready to Take Your Film Production to the Next Level?

PLASTAR offers a complete set of resources to empower your success :

• Personalized Consultations : Discuss your specific needs and explore custom solutions with our team of specialists.
• In-Depth Industry Insights : Gain valuable knowledge about this critical technology by reading our informative blog post, "Blown Film Extrusion Lines for Barrier Film."
• Comprehensive Knowledge Resources : Access our detailed guide, "LDPE Blown Film Machine – All You Need to Know," to gain a thorough understanding of LDPE film production.

Partner with PLASTAR to unlock the full potential of blown film extrusion technology and take your film production to the next level !
